Mastering Gun Bluing Techniques: A Guide to Hot Bluing Process

When it comes to firearm finishing, hot bluing is considered the gold standard for durability, corrosion resistance, and aesthetics. Unlike cold bluing (which is more of a quick touch-up), hot bluing is a professional process used by gunsmiths and manufacturers to produce that deep, glossy, black-blue finish that both protects and beautifies steel surfaces.

In this article, we’ll cover how the hot bluing process works and provide the exact chemical solution ratios used in professional setups.

1. Understanding Hot Bluing

Hot bluing is a chemical conversion process that transforms the steel surface into magnetite (Fe₃O₄) through controlled oxidation in an alkaline salt bath. The result is a tough, corrosion-resistant finish that doesn’t flake like paint or plating.

The process works only on carbon steel and low-alloy steels — it will not work on stainless steel or non-ferrous metals without special modifications.

2. Step-by-Step Hot Bluing Process

Step 1: Complete Disassembly

The firearm must be fully stripped — no springs, stocks, or non-steel parts should be exposed to the bluing bath. Even tiny hidden parts made from a different metal can cause chemical contamination.

Step 2: Surface Preparation(Before Degreasing)

Polish the metal to the desired finish — this determines the final look.

• Remove old finish or rust: Start sanding with rough paper (like 220 grit). Move to finer paper (400–600 grit).

  • For a shiny (mirror) finish: Sand up to 1000–2000 grit, then polish with buffing compound.

  • For a dull (matte) finish: Stop around 400–600 grit, or use light bead blasting.

• Smooth out rough spots: Use a fine file or stone to remove burrs, dents, or sharp edges.

• Final surface cleanup: Blow off dust or blow with air, then wipe with a lint-free cloth and solvent (like acetone or isopropyl alcohol).

• Neutralize & rinse: Wash with clean water, then dip in a soda-and-water mix to stop acid action. Rinse again and dry.

• Handle only with gloves: After this step, never touch with bare hands—finger oil will cause blotchy bluing. Now you're ready for degreasing.

Step 3: Degreasing

Any oil, grease, or fingerprint residue can cause streaks and uneven bluing. Use a high-quality degreaser or boil the parts in a mild detergent solution, then rinse them in hot water.

For best results, before hot bluing:

1. Boil parts in a mild detergent bath to lift oils.

2. Final wipe with acetone or a professional degreaser.

3. Avoid touching with bare hands afterward — wear powder-free nitrile gloves.

Step 4: Preparing the Bluing Solution

A standard professional bluing solution is a mixture of sodium hydroxide (NaOH) and sodium nitrate (NaNO₃) or potassium nitrate (KNO₃).

Chemicals Used in Hot Bluing

• Sodium Hydroxide (NaOH): Creates the hot, caustic medium in which the reaction happens.

• Sodium Nitrate (NaNO₃) / Potassium nitrate (KNO₃): Oxidizer that slowly converts steel to magnetite (Fe₃O₄).

• Sodium Nitrite (NaNO₂): A faster, more active oxidizer than nitrate. It makes the bluing bath:

  • Work at slightly lower temperatures

  • Act faster (shorter immersion time)

  • Give a more even finish

Commercial Hot Bluing Solution Ratio (per 10 liters of water) using a 10:1:1 ratio :

1. Sodium Hydroxide (Caustic Soda) → 10 kg

2. Sodium Nitrate or Potassium Nitrate → 1 kg

3. Sodium Nitrite (NaNO₂) → 1 kg

4. Water (distilled preferred) → 10 liters

Notes:

• This matches the 10:1:1 ratio by weight used in commercial shops.

• These are very aggressive, high-concentration caustic solutions, giving a dark, durable magnetite (Fe₃O₄) finish.

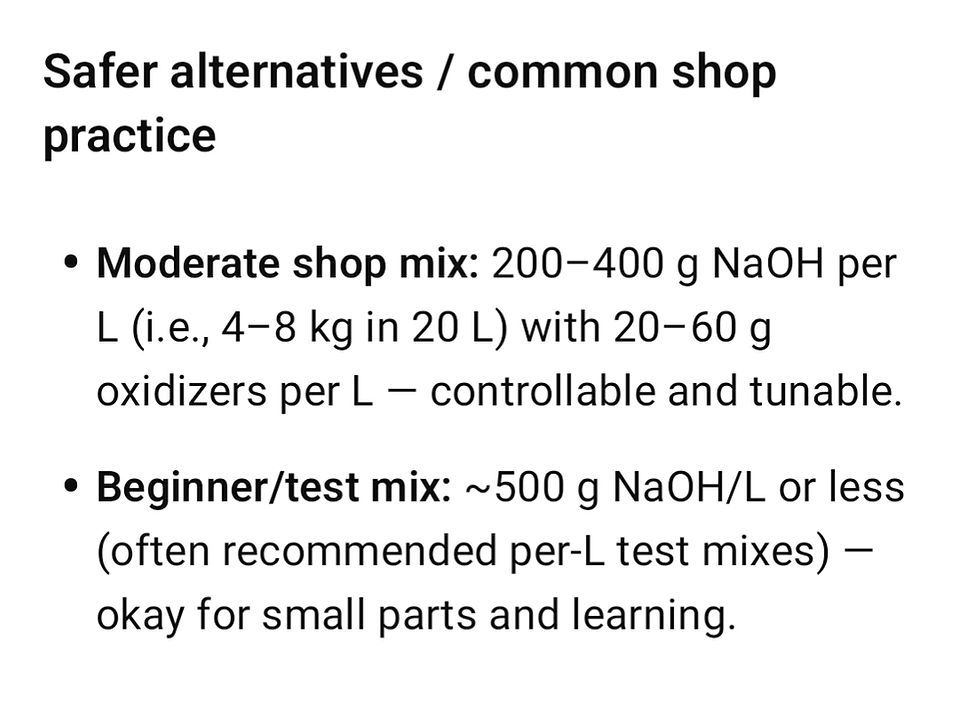

For a safer "beginner" or test concentration Ratio (per 1 liter of water)

• Sodium Hydroxide (Caustic Soda) → 500g

• Sodium Nitrate or Potassium Nitrate → 50g

• Sodium Nitrite (NaNO₂) → 50g

• Water (distilled preferred) → 1 liter

Without Sodium Nitrite

• You can still run a bath with just NaOH + NaNO₃.

• The bath will work, but:

  • Bluing takes longer (25–45 minutes vs. 15–30 minutes).

  • Sometimes the color is less uniform, especially on alloy steels.

  • Temperature must be carefully maintained at the higher end (~150 °C).




Mixing Order (Very Important for Safety)

1. Prepare the Tank

   • Use a steel tank (mild steel or stainless steel).

   • Never aluminum, zinc, or brass → the caustic salts will eat them.

   • Put the tank on a gas burner or electric heater.

2. Add Water First

   • Pour ~10 liters of water into the tank.

3. Add Sodium Hydroxide (NaOH)

   • Slowly add ~10 kg NaOH while stirring with a steel rod.

   • Strong exothermic reaction → the solution will get hot by itself.

   • Wait until it stabilizes and cool before the next step.

4. Add Potassium Nitrate (KNO₃) or Sodium Nitrate

   • Add 0.8–1.0 kg KNO₃ slowly while stirring.

5. Add Sodium Nitrite (NaNO₂)

   • Finally, add 0.8–1.0 kg NaNO₂ while stirring.

   • Be cautious, as nitrite is reactive — add it slowly.




Step 5: Heating the Bath

Heat the solution to 135–150°C (275–300°F). Maintain this temperature range — too low and bluing won’t occur; too high and the finish can be damaged.

Check the Thermometer: Use a reliable, calibrated thermometer.

• If the boiling point is below 285°F (140 °C): The Solution is too weak. Add a small amount of your Stock Concentrate and recheck the boiling point

• If the boiling point is above 295°F (146 °C): The solution is too strong. Add a small amount of distilled water and recheck the boiling point.

• Target: Adjust until the solution boils steadily between 285°F - 295°F (140 °C - 146 °C)

Step 6: Immersion

Suspend the steel parts in the hot bath for 15–30 minutes. Agitate slightly or rotate the parts periodically for even coloring.

Step 7: Rinsing

• Remove parts and rinse thoroughly in clean hot water to neutralize residual salts.

• Dip in neutralizing bath (warm water + baking soda)




Step 8: Oil Sealing

Dry the parts quickly (compressed air works best) and immediately apply a high-quality gun oil to seal the pores and prevent flash rusting.

How It Works

• The NaOH creates a boiling, highly caustic environment. It is the main caustic medium; it dissolves oxides and exposes steel.

• The nitrates/nitrites act as oxidizers that convert Fe → Fe₃O₄

• When steel is immersed, its surface undergoes a chemical conversion into a thin, uniform layer of black magnetite (Fe₃O₄).

• Too little oxidiser  → reddish or brown finish.

• Too much oxidiser  → pitting, roughness, and short bath life




Sodium Nitrate vs. Potassium Nitrate in Bluing

• Both are oxidizers → both work to convert the steel surface to black magnetite (Fe₃O₄).

• Sodium nitrate is more commonly used because it dissolves better in the caustic bath.

• Potassium nitrate works fine, but:

  • Needs a little higher temperature to stay active.

  • Sometimes leaves more salt residue (so thorough rinsing is important)




3. Safety Considerations

Chemical Safety Chart

Hazard	Chemical	Risk	Protection
Burns & skin damage	Sodium Hydroxide	Strong alkali – causes severe burns	Rubber gloves, apron, face shield
Toxic fumes	Nitrate compounds	Harmful if inhaled	Work outdoors or use an exhaust fan
Steam eruption	Water in a hot bath	Can cause violent splashing	Never add water to hot salt

4. Advantages of Hot Bluing

• Deep, durable finish with superior corrosion resistance

• Professional-grade appearance

• Even coating on complex shapes




5. Common Issues & Fixes

Issue	Cause	Fix
Patchy finish	Poor degreasing or contamination	Repeat degrease and re-blue
Red rust spots	Overheating or incomplete oil sealing	Maintain correct temperature and oil thoroughly
Gray finish	Low bath temperature	Adjust to 135–150°C

COLD VS HOT BLUING

Hot Bluing Solution Formula Chart

This chart outlines the necessary components for a functional commercial caustic bluing solution.

The "water volume" in the chart refers to the total final volume of the diluted, working solution in your tank.

Total final Solution Volume	Sodium Hydroxide (NaOH)	Sodium Nitrate (NaNO3) or Potassium Nitrate(KNO3)	Sodium Nitrite (NaNO2)	Water (Distilled)
1 Litre	1kg	100g	100g	1L
5 Litre	5kg	500g	500g	5L
10 Litre	10kg	1kg	1kg	10L
15 litre	15kg	1.5kg	1.5kg	15L
20 Litre	20kg	2kg	2kg	20L

Pro Tip for Simplification: You can pre-mix the dry chemicals in the correct ratio to create a "BLUING SALT MIX".

Pre-mix Ratio by Weight: 10 parts NaOH: 1 part NaNO3 / KNO3 : 1 part NaNO2

i.e 10:1:1,

For a Professional gunsmith, the correct ratio is whatever amount of pre-mixed commercial bluing salt is needed to achieve a boiling point of 288°F (142 °C).

In short: Trust the boiling point, not just the recipe. Whether using a home mix or commercial salts, the thermometer is your final and most important judge.
